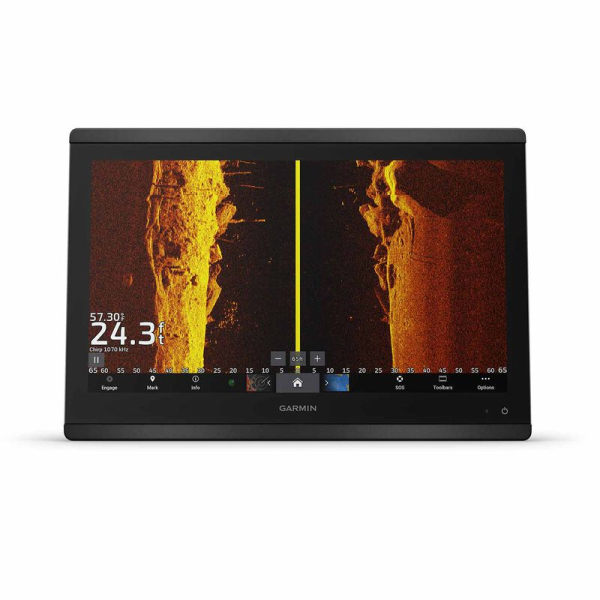

Garmin GPSMAP 8622 With Mapping

We have the Garmin GPSMAP 8622 for sale, a flagship 22” full-HD touchscreen chartplotter/sonar combo engineered for high-performance marine navigation. Designed for serious anglers and professionals, the GPSMAP 8622 delivers crystal-clear imaging, blazing-fast processing, and seamless connectivity for an unrivaled helm experience.

Equipped with Garmin Navionics™ inland and coastal mapping, SmartMode™ controls, and full sonar support, this display is ready to power your complete marine network—whether you’re offshore fishing, racing sailboats, or cruising inland waterways.

Key Features

• 22” Full HD IPS Touchscreen
  Ultra-clear 1920 x 1080 resolution with in-plane switching (IPS) for superior visibility, even with polarized sunglasses.

• Built-in Garmin Navionics™ Mapping
  Preloaded coastal and inland charts with Auto Guidance+™ and daily updates via included 1-year subscription.

• Network-Ready Integration
  Seamlessly integrates with Garmin Marine Network, NMEA 2000®, NMEA 0183, radar, sonar, AIS, VHF, autopilot, and more.

• Advanced Sonar Support
  Supports 1-kW CHIRP sonar, ClearVü™, SideVü™, and Garmin LiveScope™ (transducers and sonar boxes sold separately).

• SmartMode™ Station Controls
  One-touch access to radar, sonar, cameras, and chart combinations—customized for different boating scenarios.

• Wi-Fi®, Bluetooth®, and ANT® Technology
  Connect to Garmin apps, Fusion® audio, quatix® watches, wireless transducers, and remote controls.

• Sailing Tools & Race Features
  Includes SailAssist with laylines, wind data, polars, tide/current sliders, and more for competitive sailing.

• Remote Control Compatible
  Operate your chartplotter with the optional GRID™ 20 remote, wireless remotes, or the Garmin Helm™ app.

• OneHelm™ Integration
  Manage third-party systems like digital switching and lighting from one screen.

Garmin GPSMAP 8622 Specifications

Display

• Size: 21.5” diagonal (18.8″ x 10.6″)

• Resolution: 1920 x 1080 Full HD

• Type: IPS Touchscreen

• Waterproof Rating: IPX7

• Mounting: Flush or Flat

Connectivity

• NMEA 2000® Ports: 1

• NMEA 0183: 4 input, 2 output

• HDMI Input/Output: Yes

• Composite Video Input: 1 BNC

• Garmin Marine Network Ports: 4

• J1939 Port: 1

• USB, Wi-Fi®, ANT®, Bluetooth®: Yes

Sonar Support (Requires Optional Black Box/Transducers)

• Traditional CHIRP

• ClearVü and SideVü

• Panoptix™ and LiveScope™

Navigation & Memory

• Built-in Garmin Navionics™

• Accepts 2 SD Cards

• Waypoints: 5,000

• Tracks: 50 saved tracks

• Track Points: 50,000

• Routes: 100

Power

• Input: 10-35 Vdc

• Typical Draw: 3.9 A at 12 Vdc

• Max Power Use: 59W

What’s in the Box

• Garmin GPSMAP® 8622

• GPS 24xd NMEA 2000® Antenna (with mount adapters)

• Flush mount hardware & protective cover

• Power cable

• Trim piece snap covers

• NMEA 2000 backbone and drop cables

• NMEA 2000 power cable

• T-connector & terminators

• Documentation

Top Benefits

• 🧭 Unmatched Clarity: 22” HD IPS touchscreen provides crisp detail and easy readability in any light.

• 🧠 Smart Helm Control: With SmartMode™, switch from chart to sonar to radar instantly.

• 🔌 Fully Networked: Share radar, sonar, charts, and user data across multiple Garmin displays.

• 📡 Advanced Sonar Ready: Unlock powerful fishfinding capabilities with optional sonar modules.

• ⛵ Sailing Intelligence: Optimize trim and strategy with polars, laylines, and advanced wind tools.

• 📱 Wireless Everything: Connect via Bluetooth®, ANT®, or Wi-Fi® to your favorite marine devices and apps.

FAQs – Garmin GPSMAP 8622

Q: Does the GPSMAP 8622 include sonar?
A: It supports advanced sonar but requires separate black box modules and transducers, such as GSD™, GCV™, or LiveScope™.

Q: Are maps included?
A: Yes, it includes Garmin Navionics™ inland and coastal mapping with a 1-year subscription for updates.

Q: Can I control this chartplotter remotely?
A: Yes, it’s compatible with the GRID™ 20 remote and can be controlled via the Garmin Helm™ mobile app.

Q: Is this display readable in direct sunlight?
A: Absolutely. The IPS display offers superb sunlight readability, even when wearing polarized sunglasses.

Q: How many displays can I install together?
A: Multiple GPSMAP MFDs can be flush- or flat-mounted side by side for a stunning glass helm layout.

Buy Garmin GPSMAP 8622 – In Stock Now

Model: GPSMAP 8622
Availability: ✅ 32 Units In Stock
Brand: Garmin
Warranty: 1-Year Manufacturer Warranty
