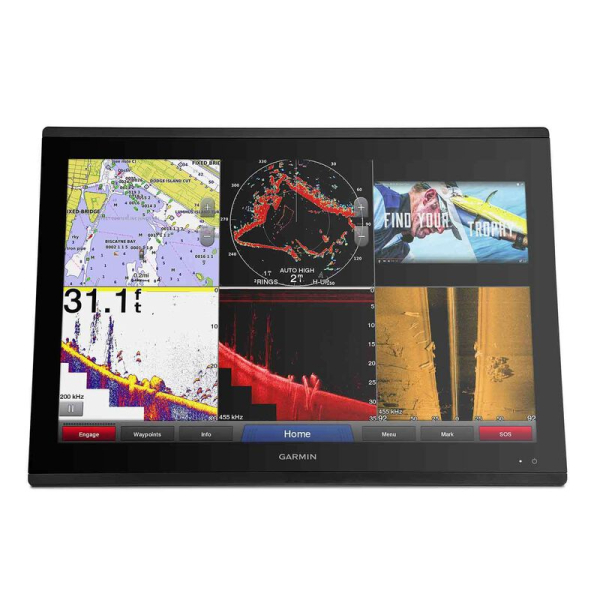

Garmin GPSMAP 8624 – Premium 24” Marine Chartplotter with Mapping

We have the Garmin GPSMAP 8624 for sale the ultimate chartplotter/sonar combo for elite anglers, cruisers, and sailors who demand superior clarity, unmatched mapping detail, and next-level network integration. This easy-to-use, easy-to-install MFD (multi-function display) delivers full-system control with an expansive 24” HD IPS touchscreen, preloaded mapping, and powerful sonar support — all in one stunning unit.

Key Features

🔹 Full HD 24” IPS Touchscreen

• Massive 24” sunlight-readable display with in-plane switching (IPS) technology for crisp clarity, vibrant color, and wide viewing angles — even with polarized sunglasses.

🔹 Preloaded Garmin Navionics™ Mapping

• Integrated coastal and inland maps with Auto Guidance+™ technology and a 1-year subscription for downloadable daily chart updates.

🔹 Advanced Sonar Compatibility

• Supports 1 kW dual-channel CHIRP sonar, ClearVü™, SideVü™, and Panoptix™ LiveScope™ sonar (with optional transducers and black boxes).

🔹 Live Sonar Ready

• See fish and structure around your vessel in real time with Panoptix or LiveScope sonar (sold separately).

🔹 Garmin SailAssist™ Features

• Includes laylines, wind data, race start guidance, polars, current/tide sliders, and more for optimal sailing performance.

🔹 SmartMode™ Station Controls

• One-touch access to vital data like sonar, radar, cameras, and media for easy situational management.

🔹 Robust Networking Options

• Fully compatible with Garmin Marine Network, NMEA 2000®, NMEA 0183, J1939, Wi-Fi®, ANT® wireless, and Bluetooth® technologies.

🔹 OneHelm™ and ActiveCaptain® Integration

• Seamlessly control EmpirBus™ digital switching, receive smart notifications, share charts, and manage updates via mobile app.

Technical Specifications

Connectivity

• 4 Garmin Marine Network ports

• 1 HDMI video output, 1 HDMI/BNC input

• 1 USB port

• 1 J1939 port

• 1 NMEA 2000® port

• 4 NMEA 0183 input ports (2 TX)

• Wi-Fi®, Bluetooth®, and ANT® compatibility

In the Box

• Garmin GPSMAP 8624 unit

• GPS 24xd NMEA 2000 with mounting adapters

• Trim snap covers

• Protective cover

• Power cable

• Flush mount kit

• NMEA 2000 cables and connectors

• Documentation

Benefits

✅ Unrivaled 24” navigation screen for total control at the helm
✅ Real-time sonar viewing with LiveScope™ support
✅ SailAssist™ tools give racers and cruisers an edge
✅ Fully customizable SmartMode™ for stress-free operation
✅ Future-proof connectivity with Garmin’s expanding ecosystem
✅ Seamless mobile integration via ActiveCaptain®

FAQs

Q: Does the GPSMAP 8624 come with preloaded maps?

A: Yes, it includes integrated Garmin Navionics+™ coastal and inland maps with Auto Guidance+™ and a 1-year subscription to daily updates.

Q: What transducers are compatible with this unit?

A: It supports Garmin’s traditional CHIRP, ClearVü™, SideVü™, and Panoptix™ LiveScope™ transducers (sold separately).

Q: Can I mount multiple displays together?

A: Yes, the GPSMAP 8624 is designed for flat or flush mount installations, and you can align multiple units edge-to-edge for a sleek glass helm setup.

Q: Is it compatible with Garmin autopilots and radar?

A: Absolutely. It supports full network integration including autopilot control, radar, sonar, AIS, digital switching, and more.

Availability: ✅ 27 In Stock
Model Number: GPSMAP 8624
Brand: Garmin
