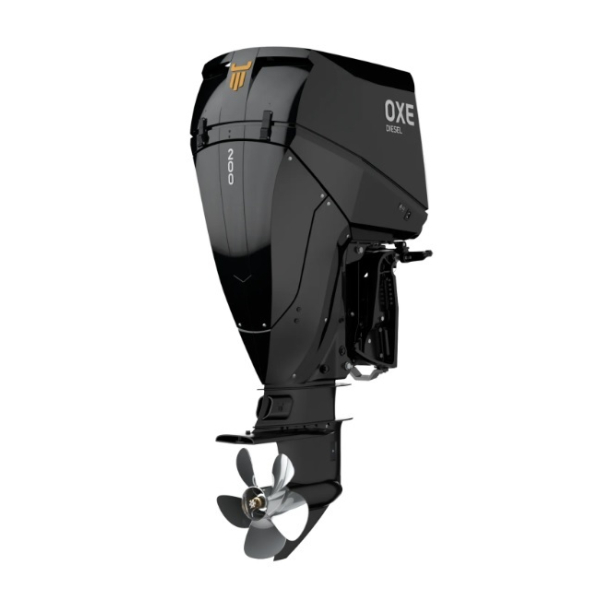

New OXE 200HP Outboard Diesel Engine

The OXE 200HP Outboard Diesel Engine is the most powerful unit in the product line. It meets the demand of users who requires high-speed capacity. It delivers 200 HP and 415 NM (306ft-lb) of torque. With the high torque gear ratio on the primary belt, the unit delivers up to 900 NM (664 ft-lb) of torque on the propeller shaft.

The turbo and the gearbox of the OXE 200 have been further developed to withstand the increased torque and power. The Oil fill has been significantly simplified and volume has been enlarged to 2L. The Turbo has been further developed to withstand the higher temperatures developed by the increased effect.

The primary customers for the OXE 200 are Governmental, Transportation, Search and Rescue and other applications with high-speed demands.

PERFORMANCE

POWER AND VERSATILITY
The powerful high torque of the diesel engine manifests itself throughout the OXE Diesel engine series. Together with the robust transmission and interchangeable gear ratios, it provides the users with reliable options to use the engine as both a powerful workhorse and a high-speed solution.

Diesel provides for high efficiency and torque. It gives increased load capacity and greatly reduced fuel consumption compared to gasoline, increasing the range by over 60%.

LONG RANGE AND GREAT FUEL ECONOMY
Due to a significantly lower fuel consumption than a leisure outboard, the OXE Diesel offers the user unprecedented range. The fact that OXE Diesel runs on diesel gives the user the ability to refuel from larger diesel-powered vessels or marine-based platforms that further increases the versatility. This greatly increases operational runtimes for operators who predominantly use diesel as the main fuel. The OXE Diesel also has great fuel economy and uses 40% less fuel than a modern, leisure, gasoline outboard.

Reduced CO2 emissions
The reduced fuel consumption is a key factor to why the OXE Diesel engine emits significantly lower CO2 than a gasoline outboard engine. One litre of diesel produces approximately 2.69kg CO2 and one litre of gasoline produces 2.36kg CO2 when ignited. Since OXE200 consumes less fuel than gasoline alternatives, it reduces CO2 emissions by up to 34.5%.

Reduced CO emissions
Just as with CO2, the reduced fuel consumption is a key factor to why the OXE Diesel engine emits significantly lower CO when comparing the OXE Diesel to pleasure craft gasoline outboards. The much stricter directives that exist in the automotive industry, such as for example the EPA Tier III regulations, have directly benefitted the OXE Diesel engine since its powerhead is derived from the automotive industry. In accordance with EPA Tier III, one litre of diesel should only emit 8.36g while the non-regulated gasoline engines can emit up to 620g/l.

The result is a dramatic reduction of harmful CO by up to 99.7% compared with a ness regulated gasoline engine.

Reduced HC NOX emissions
Lower fuel consumption means that the OXE Diesel engine emits significantly lower HC and NOx than gasoline outboard engines. One litre of diesel produces approximately 17.8g of HC NOx when ignited, compared to 33.4g of HC NOx for one litre of gasoline.

Since OXE200 consumes up to 42% less fuel than gasoline alternatives, it reduces the HC NOx emissions by up to 69.8%.

Technical Data – OXE 200

Engine type:    Diesel, L4
Displacement:    2.0 L
Intake:    Turbocharged, inter-cooled
Torque:    415 Nm at 2500 rpm
Power:    200 HP at 4100 rpm
Fuel:    Diesel
EN 590, ASTM D 975 No.1
No.2. JIS KK2204, F54 & F75
Weight:    350 kg
Alternator output:    130 Amp
Rig length:    25” or 33”
Cooling:    Closed cooling circuit
Starting:    Electric
Steering:    Electronic Power Steering
Shiſt:    CANbus, Electro-hydraulic
Clutch:    Hydraulic multi-friction plate
Gear ratios:    1.73:1 and 2.17:1
Dimensions (25” leg), LHW    994x1880x678mm
