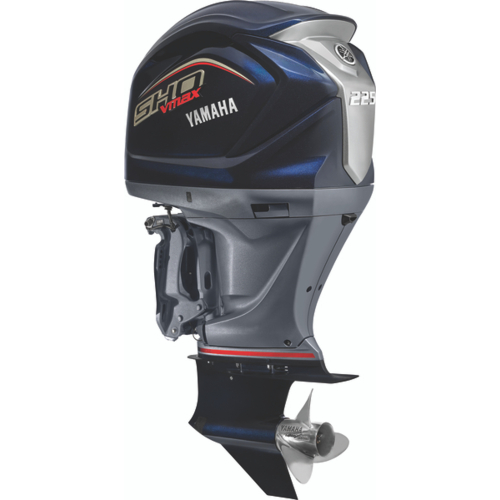

New Yamaha VF225LB 225hp V Max Sho Outboard Engine

The second it hit the water, the V6 V MAX SHO® defied all expectations. It brought four-stroke efficiency to the two-stroke world of competitive fishing. The circuit had never seen anything like it—and the V MAX SHO quickly became the pro anglers’ power of choice. More than a decade later, it’s still going strong—recently powering four consecutive Bassmaster® Angler of the Year titles. It’s clearly still a competitive choice, and it’s getting even better. The V6 V MAX SHO now offers 40 percent more charging power, wrapped in a striking, new cowling design.

KEY FEATURES

Charging Power: The V6 V MAX SHO now produces up to 70 gross amps of charging power. This exciting, 40 percent increase in charging is more than enough juice for your growing array of on-board tech. They can also be equipped with an optional isolator lead to better charge house or trolling batteries.

Real-Time Performance Data: Optional digital backlit gauges provide real-time outboard performance, boat systems and environmental data at your fingertips. Streamlined displays are designed to withstand the elements and are available in square or round style for single- or multi-engine applications.

Fast, Easy Tilting: With a quick double-tap of the trim button, Yamaha’s new, exclusive, TotalTilt® performs a full tilt up or down, until it reaches the trim rams. This makes trailering quick and easy and is handy when a complete up or down tilt is needed.

SPECS :

Engine Type    V6
Displacement    4.2L
Bore x Stroke    96 x 96mm (3.78 x 3.78 in)
Prop Shaft Horsepower    225hp at 5500 rpm
Full Throttle RPM Range    5000 ~ 6000 rpm
Alternator Output at W.O.T.    70 Amp
Compression Ratio    10.3:1
Fuel Induction System    EFI
Weight †    240 kg (529 lbs)
Recommended Fuel    Octane 89
Recommended Engine Oil    Yamalube® 4M (See owner’s manual)
Recommended Fuel Filtration    Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating    3-Star
Exhaust    Through Propeller
Intake    24
Ignition    TCI Microcomputer
Spark Plug    LFR6A-11
Alternator Output    50 Amp
Starting System    Electric
Lubrication    Wet Sump
Engine Oil Capacity    6.7L/6.4L
Recommended Cooling    Thermostatic Control
Ethanol Blend Limit    10% Maximum
Gear Ratio    1.75:1
Gear Shift    Forward, Neutral, Reverse
Shaft Length    20″
Degree of Tilt    66°
Degree of Trim    -4° through 16°
Dry Weight    240 kg (529 lbs)
Mounting Centers    N/A
Steering Angle (maximum)    35° from center, either direction
Warranty    Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

STANDARD FEATURES :

Power Trim & Tilt
Owner’s Manual
Prop included
