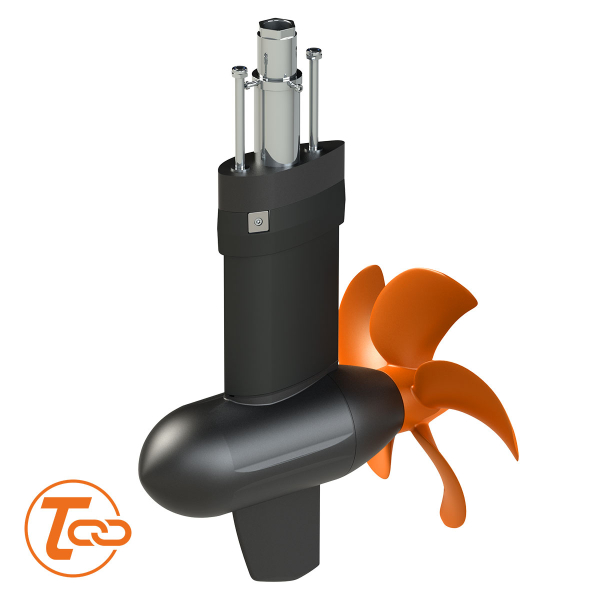

Torqeedo Deep Blue 25 RL Electric Outboard

The Torqeedo Deep Blue 25 RL Electric Outboard for sale is a powerful 40 HP-equivalent motor designed for both recreational and commercial vessels. Built as part of a fully integrated, modular system, Deep Blue sets the standard for performance, safety, and reliability in electric marine propulsion. This high-voltage, water-cooled drive system delivers superior power with minimal maintenance and a significantly reduced environmental footprint.

Every component is engineered to work seamlessly together, ensuring maximum efficiency, safety, and waterproof protection. With cutting-edge lithium battery technology and a 9-year capacity warranty for private use, the Deep Blue 25 RL offers a compelling alternative to traditional combustion engines.

Included

• Deep Blue 25 RL Outboard Motor

• Electric tilt and trim system

• High-speed 5-blade standard propeller

• Complete cabling set

• Direct water cooling system

• Compatible Deep Blue 40 kWh Battery (sold separately)

Key Features

• 25 kW continuous shaft power (40 HP equivalent)

• Fully integrated propulsion system with onboard touchscreen computer

• Direct water-cooled motor with advanced thermal protection

• High-efficiency lithium-ion battery (352V) with up to 9 years of warranty (private use)

• Electric tilt and trim for optimal performance and convenience

• IP67 waterproof rating for all components

• State-of-the-art safety system including pilot lines, insulation monitoring, and short-circuit protection

• Pantaenius Yacht Insurance discounts available for Deep Blue-equipped vessels

• Lower maintenance compared to gas-powered systems

• Transparent battery health tracking and usage data

Torqeedo Deep Blue 25 RL Electric Outboard Specifications

Motor (Deep Blue 25 RL)

• Input Power (Continuous): 27.5 kW

• Shaft Output Power (Continuous): 25 kW

• Comparable Gas Outboard Power: 40 HP

• Nominal Voltage: 350 V

• Max Shaft RPM: 1,830

• Max Torque: 129 Nm

• Maximum Efficiency: 89% (electrical to mechanical)

• Overall System Efficiency: 54%

• Cooling System: Direct water cooling

• Protection Rating: IP67

• Weight: L: 139 kg | XL: 146 kg

• Dimensions (L/W/H): 868 x 394 x 1,535 mm

• Shaft Length Options: L – 51 cm (20″) | XL – 63.5 cm (25″)

• Standard Propeller: 12.5” diameter / 15.8” pitch / 5-blade

• Propeller Mounting: Gearcase 4¼”, Shaft 13 teeth

Battery (Deep Blue 40)

• Nominal Voltage: 352.3 V

• Usable Capacity: 38 kWh

• Max Continuous Output: 55 kW

• Weight: 284 kg

• Dimensions: 1666 x 993 x 173 mm

Performance (With Deep Blue 40 kWh Battery)

Benefits

• True 40 HP electric replacement: High torque and performance with low environmental impact

• Integrated safety system: Protects against high-voltage faults and overheating

• Effortless cruising: Quiet, vibration-free, and maintenance-light operation

• Modular design: Easily integrates with Deep Blue’s full system, including batteries, displays, and remote controls

• Long-term value: Transparent battery diagnostics and an industry-leading warranty

• Insurance incentives: Enjoy lower premiums with Pantaenius Yacht Insurance when using Deep Blue systems

FAQs

Q: What kind of boats is the Deep Blue 25 RL suited for?
A: It’s ideal for leisure craft and commercial vessels requiring high power and reliability—up to 40 HP equivalent.

Q: Is the Deep Blue 25 RL waterproof?
A: Yes, all system components are fully waterproof (IP67 rated) and designed for harsh marine environments.

Q: How is the motor cooled?
A: The Deep Blue 25 RL uses a direct water cooling system to maintain optimal operating temperature.

Q: Can I use this with third-party batteries?
A: No. The Deep Blue system is designed to operate exclusively with Torqeedo’s Deep Blue lithium batteries for safety and performance integrity.

Q: What warranty does it come with?
A: Private users benefit from up to a 9-year battery capacity warranty when registered with Torqeedo.

Availability: 36 In Stock
Model: Deep Blue 25 RL
Brand: Torqeedo
